Scaling an enterprise-grade app requires more than shipping features. It depends on clear visibility into performance. For my Local Media Search MCP server, that meant adding real application performance monitoring (APM) instead of relying only on container logs from the Hugging Face Space where the server is deployed.

The MCP server is a Python and Gradio application that uses SigLIP to encode text queries, search a FAISS index, and generate embeddings for images and video frames during indexing. These CPU-intensive steps push the limits of a free-tier Hugging Face Space. While the container logs provide detailed event-level output, monitoring the MCP server requires additional structured metrics and historical performance data.

To get that level of observability, I integrated AppSignal with the MCP server. This post explains why I chose AppSignal, how I instrumented the server to send the performance data to AppSignal, and the performance insights now available through AppSignal dashboards.

Why AppSignal?

When evaluating APM tools, I had specific requirements for this project:

• Python + OpenTelemetry support: AppSignal's Python SDK is built on OpenTelemetry, allowing standard OpenTelemetry instrumentation libraries to work alongside AppSignal's helper functions. These libraries and helper functions could be easily added to the MCP server's async Python logic.
• Custom metrics without infrastructure overhead: AppSignal's set_gauge() and increment_counter() helpers let me track custom metrics with just a function call. No need to run a separate metrics server or additional services to deploy.
• Error tracking with context: When SigLIP inference fails or a file becomes inaccessible, I needed the stack trace plus the context of what operation was running. AppSignal's send_error() captures both.
• Anomaly detection and alerting: I wanted to know when search latency spikes above normal, not just see it in a graph later. AppSignal's trigger system lets me set thresholds and get notified.
• Uptime monitoring included: Since the Hugging Face Space can go to sleep, I needed uptime checks. AppSignal includes this in the same dashboard, so I don't need yet another monitoring service.

The Instrumentation

The MCP server requires instrumentation, that is, adding code that gathers app performance data to send to AppSignal. This touched three files: requirements.txt, app.py, and ai_indexer.py.

Dependencies

# requirements.txt
appsignal
opentelemetry-instrumentation-starlette

The appsignal package includes all the Python helpers. The Starlette instrumentation auto-captures HTTP requests to Gradio's underlying FastAPI app.

Configuration

I chose inline configuration over the __appsignal__.py file approach (see Bug Fixes). On Hugging Face Spaces, auto-discovery of config files was unreliable, and inline configuration made debugging easier:

# app.py
from appsignal import Appsignal, set_category, send_error, set_gauge, increment_counter
from opentelemetry.instrumentation.starlette import StarletteInstrumentor
from opentelemetry import trace
from dotenv import load_dotenv

# Load .env BEFORE AppSignal initialization
load_dotenv()

appsignal_client = Appsignal(
    active=True,
    name="MediaSearchMCP",
    push_api_key=os.getenv("APPSIGNAL_PUSH_API_KEY", ""),
    environment=os.getenv("APPSIGNAL_APP_ENV", "development"),
    enable_host_metrics=True,
)
appsignal_client.start()

The enable_host_metrics=True flag tells AppSignal to collect CPU, memory, and disk usage from the container. This is useful for spotting when the free-tier Space is running out of resources. Note that load_dotenv() must run before Appsignal() is initialized (see Bug Fixes).

I also instrumented Gradio's internal FastAPI app to capture HTTP requests:

# Apply Starlette instrumentation to Gradio's internal FastAPI app
StarletteInstrumentor().instrument_app(demo.app)

For Hugging Face Spaces, I set two secrets in the Space settings:

• APPSIGNAL_PUSH_API_KEY: the API key from AppSignal
• APPSIGNAL_APP_ENV: set to production

Custom OpenTelemetry Spans for MCP Tools

I instrumented every MCP tool to have its own OpenTelemetry span, a self-contained record of every operation of that tool, including relevant attributes of timing, metadata, and relationship with other operations in the same trace. Here's the pattern I used for semantic_search:

tracer = trace.get_tracer(__name__)

async def semantic_search(query: str, media_type: str = "all", top_k: int = 5):
    start_time = time.time()
    increment_counter("semantic_search.calls", 1)

    with tracer.start_as_current_span("semantic_search") as span:
        set_category("mcp_tool.semantic_search")
        span.set_attribute("search.query", query)
        span.set_attribute("search.media_type", media_type)
        span.set_attribute("search.top_k", top_k)

        try:
            results = indexer.search(query, top_k=top_k)

            # Track result metrics
            span.set_attribute("search.result_count", len(results))
            set_gauge("semantic_search.result_count", len(results))

            if results:
                similarities = [r["similarity"] for r in results]
                set_gauge("semantic_search.top_similarity", max(similarities))
                set_gauge("semantic_search.avg_similarity", sum(similarities) / len(similarities))
            else:
                increment_counter("semantic_search.zero_results", 1)

            duration_ms = (time.time() - start_time) * 1000
            set_gauge("semantic_search.duration_ms", duration_ms)

            return results

        except Exception as e:
            increment_counter("semantic_search.errors", 1)
            send_error(e)
            raise

The set_category() call is AppSignal-specific. It groups spans in the dashboard so I can see all mcp_tool.* operations together.

I applied the same pattern to all four MCP tools:

Span Name	Key Attributes
semantic_search	search.query, search.media_type, search.top_k, search.result_count
get_media_details	media.file_path, media.type
reindex_media	reindex.force, reindex.file_count
get_index_stats	stats.total_files, stats.images, stats.videos

Custom OpenTelemetry Spans for the AI Indexer

I also instrumented the core AI operations in ai_indexer.py with their own OpenTelemetry spans. Here's the instrumentation for the search operation:

# ai_indexer.py
from opentelemetry import trace
from appsignal import send_error

tracer = trace.get_tracer(__name__)

def search(self, query: str, top_k: int = 5):
    with tracer.start_as_current_span("indexer_search") as span:
        span.set_attribute("search.query", query)
        span.set_attribute("search.top_k", top_k)

        try:
            # Get text embedding using SigLIP
            with tracer.start_as_current_span("get_image_embedding"):
                # High-frequency operation, kept lightweight (no attributes)
                query_embedding = self._encode_text(query)

            # FAISS search
            results = self._search_index(query_embedding, top_k)
            span.set_attribute("search.result_count", len(results))
            return results

        except Exception as e:
            send_error(e)
            raise

This creates nested traces. When a user performs a search, I can see the full call chain:

POST /api/predict (auto-instrumented by Starlette)
  └── semantic_search (app.py)
        └── indexer_search (ai_indexer.py)
              └── get_image_embedding (ai_indexer.py)

Error Reporting

Every except block now reports to AppSignal:

try:
    self.model = SigLIPModel.from_pretrained(model_name)
except Exception as e:
    send_error(e)  # Reports to AppSignal with full stack trace
    raise

I added send_error() calls to:

• Model loading failures
• Video frame extraction errors
• FAISS index save/load failures
• File access errors in media processing
• All MCP tool exception handlers

Custom Metrics Summary

Here's the full list of custom metrics the server now reports:

Gauges (point-in-time values):

• semantic_search.duration_ms: end-to-end search latency
• semantic_search.result_count: results returned per search
• semantic_search.top_similarity: highest similarity score
• semantic_search.avg_similarity: average similarity across results
• reindex.duration_ms: full reindex time
• reindex.file_count: files after reindex
• index.total_files, index.images, index.videos: current index stats

Counters (cumulative events):

• semantic_search.calls: total searches
• semantic_search.zero_results: searches with no matches
• semantic_search.errors: failed searches
• reindex.calls, reindex.errors: reindex operations
• get_index_stats.calls: stats queries

Add the MCP Server in AppSignal

With instrumentation in place, the next step was registering the app in AppSignal and deploying the code so data actually flows.

Using the AppSignal Add App Wizard

On the AppSignal dashboard's Applications overview page, I clicked Add app. The wizard first asks for the application's language. Here, I selected Python.

It then asks for the framework. I selected WSGI / ASGI. This is the correct choice because Gradio 6 is built on FastAPI, which is itself built on Starlette, an ASGI framework. Selecting WSGI/ASGI tells AppSignal which instrumentation library to reference (opentelemetry-instrumentation-starlette), which was already added to requirements.txt in the previous step.

I named the app MediaSearchMCP and completed the wizard. At this point, the wizard surfaces the Push API Key for the AppSignal account. This is the org-level credential referenced by push_api_key=os.getenv("APPSIGNAL_PUSH_API_KEY", "") in the Appsignal() constructor. The Push API Key authenticates the data push from the MCP server to AppSignal.

The wizard also recommends running python -m appsignal install, which auto-generates an __appsignal__.py config file. This project skips that step and uses inline configuration instead (see Bug Fixes).

Storing Credentials as HF Space Secrets

The Push API Key and app environment are never committed to the repository. Instead, I added them as secrets in the Hugging Face Space settings of Local Media Search MCP server:

• APPSIGNAL_PUSH_API_KEY: The Push API Key from the wizard above
• APPSIGNAL_APP_ENV : Set to production

These are read at startup via os.getenv(), keeping credentials out of source control entirely.

Deploying and Triggering Auto-Registration

I pushed the instrumented code to the Hugging Face Space. When the Space started and appsignal_client.start() ran, the SDK sent its first data to AppSignal. At this point, AppSignal auto-registered the app and "MediaSearchMCP" appeared as an active application in the dashboard.

This is an important detail: the wizard provides setup instructions and surfaces the Push API Key, but no app entry exists in AppSignal until the application actually sends data. Completing the wizard alone doesn't create the app, the first data push does.

Configuring AppSignal Dashboard

With data flowing in, I configured the AppSignal side to make it actionable.

Custom Metrics Dashboard

I added a custom dashboard in AppSignal, and configured in it custom metrics reported by the MCP server.

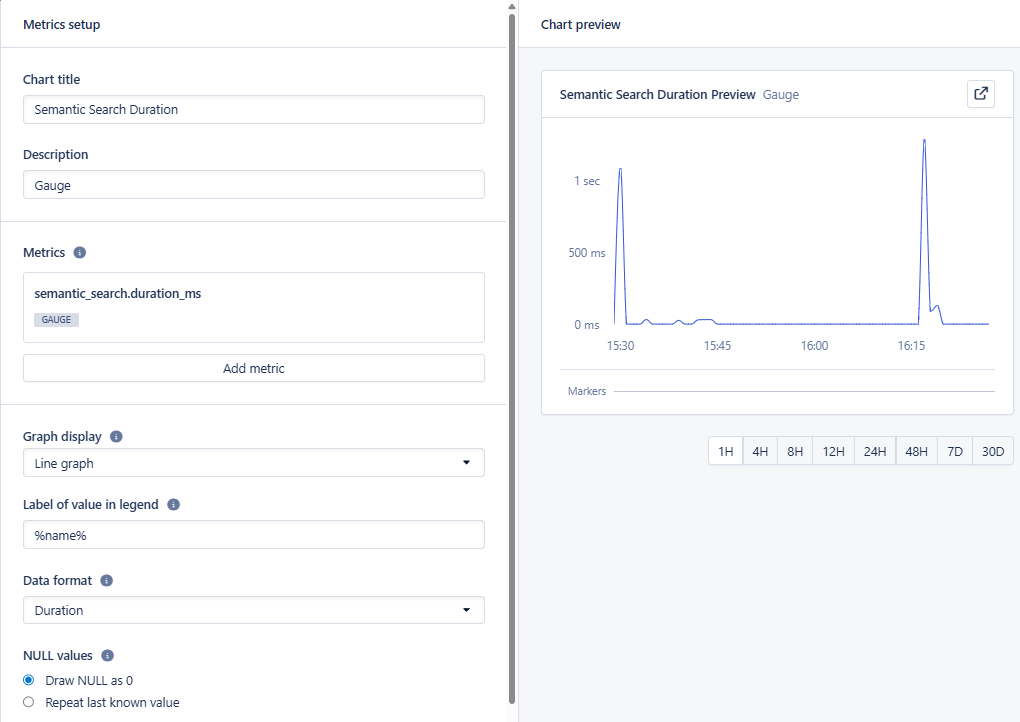

For example, to visualize the semantic_search.duration_ms gauge over time, I configured the following custom metric:

• Chart title: "Semantic Search Duration"
• Metrics: Select the semantic_search.duration_ms gauge
• Graph display: Line graph works best for time-series latency data
• Data format: Duration (displays values in milliseconds/seconds)
• NULL values: "Draw NULL as 0"

The chart preview on the right shows real-time data as per the configured graph.

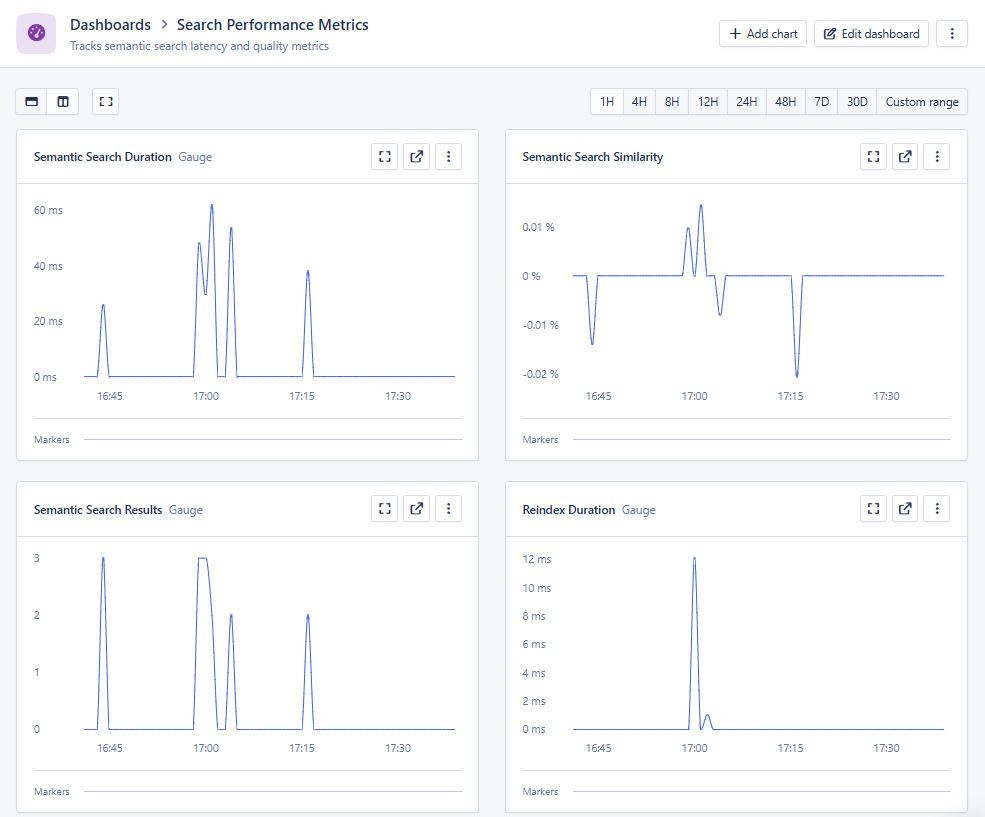

The "Search Performance Metrics" dashboard displays four key gauges tracking search performance over time: Semantic Search Duration (latency spikes up to 60ms), Semantic Search Similarity (result quality scores), Semantic Search Results (number of results returned per query), and Reindex Duration (time spent on reindex operations). The latency spikes around 17:00 correlate with cold starts after the Hugging Face Space wakes from sleep.

Uptime Monitoring

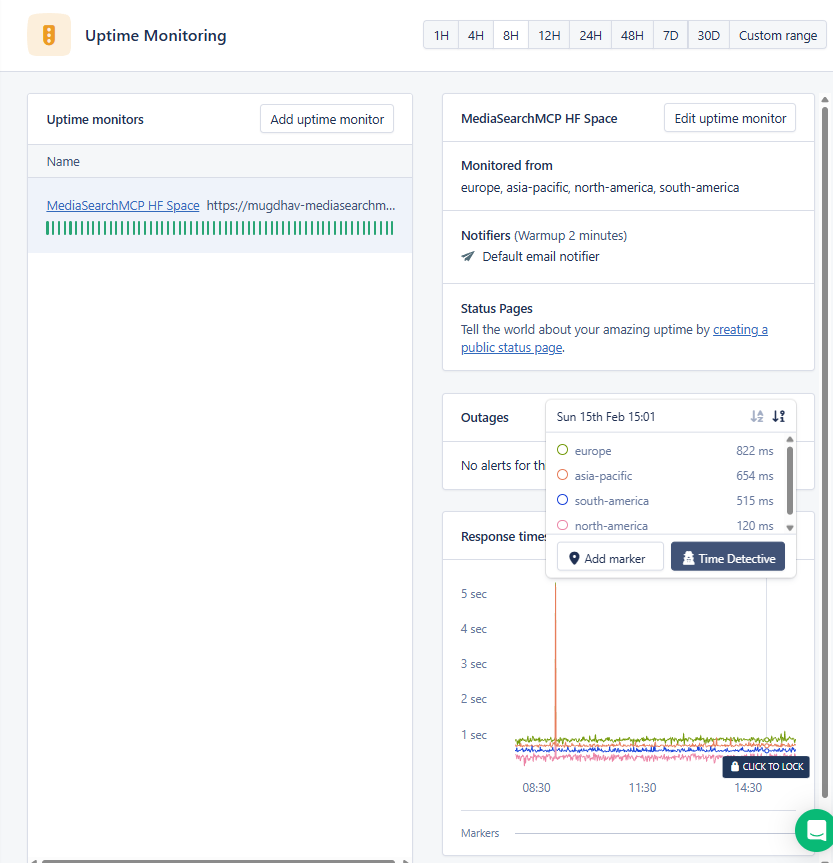

I added an uptime monitor for the Hugging Face Space URL with checks from multiple global regions:

The uptime monitor configuration includes:

• URL: https://mugdhav-mediasearchmcp.hf.space/
• Monitored from: Europe, Asia-Pacific, North America, South America
• Warm-up: 2 minutes (to avoid alerting on single failed checks)
• Notifiers: Default email notifier

The response time graph shows latency from each region. North America at 120ms is fastest (closest to Hugging Face's infrastructure), while Europe sees 822ms. This helps identify if performance issues are region-specific or global.

Anomaly Detection Triggers

I set up a trigger for slow searches:

• Metric: semantic_search.duration_ms
• Condition: Goes above 5000
• Warm-up: 2 minutes (to avoid alerting on single slow requests)

This catches sustained performance degradation without alert fatigue from one-off spikes.

Here's what it looks like when anomalies are detected:

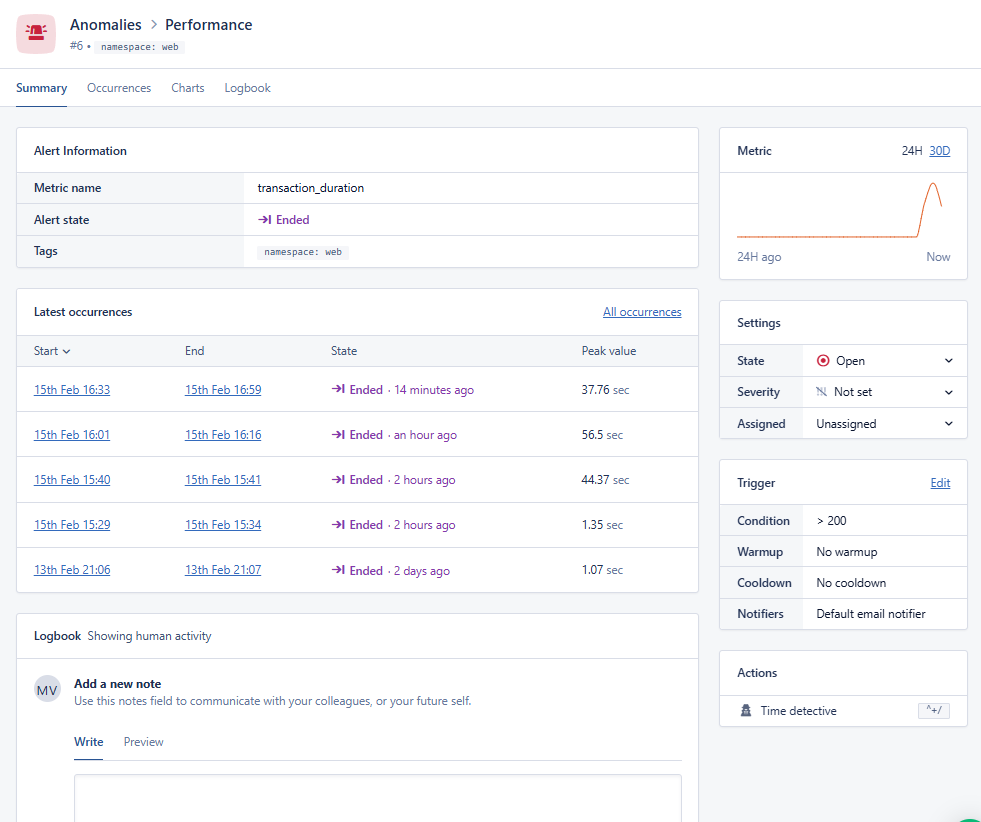

The Anomaly Detection view shows triggered alerts with their peak values. You can see several occurrences where transaction_duration exceeded the threshold. Peak values of 56.5 seconds and 44.37 seconds correspond exactly to the index_local_directory and reindex_media operations I saw in the Actions view. The trigger configuration panel on the right shows the condition (> 200ms) and notifier settings. Each occurrence is tracked with start/end times, making it easy to correlate with specific user actions or scheduled tasks.

Notification Setup

In App settings → Notifications, I configured:

• Error alerts: "First after close" notifies on new errors, not every occurrence
• Anomaly alerts: Enabled for the slow search trigger

What I'm Learning from the Dashboard

Here's where it gets interesting. The AppSignal dashboard revealed performance patterns I hadn't anticipated.

The Actions View

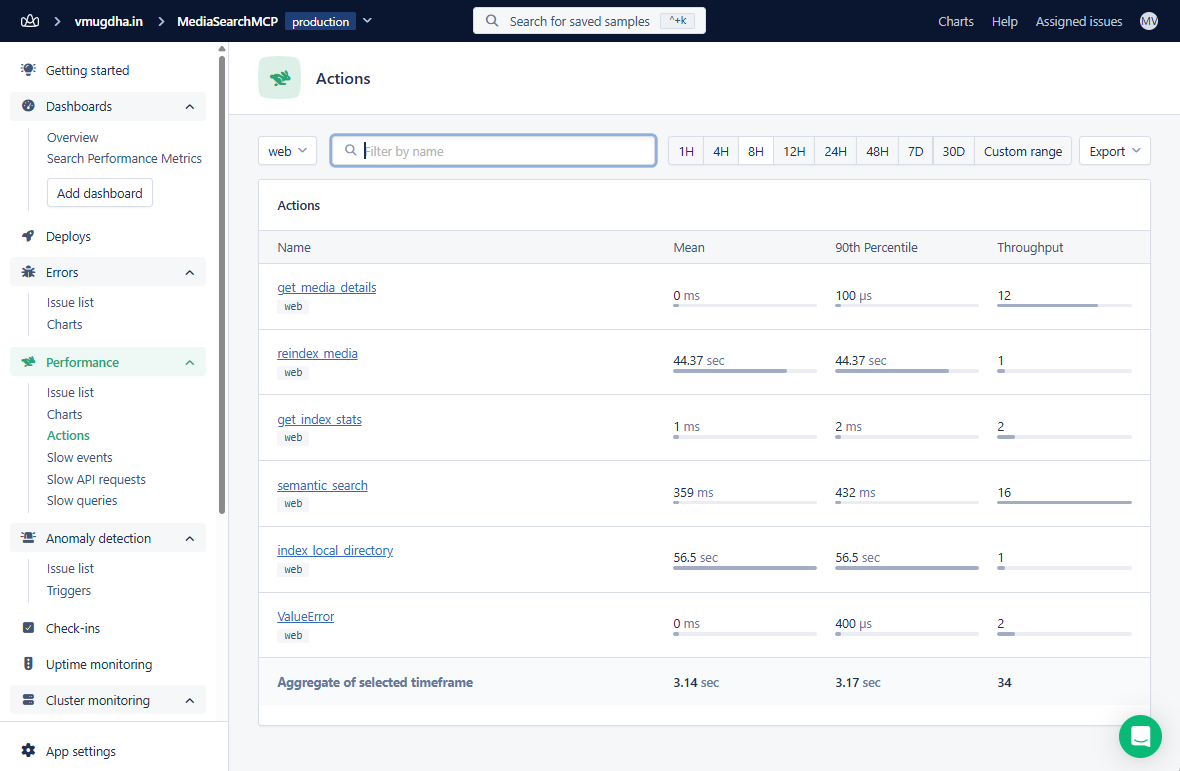

The Actions view shows all my instrumented operations with mean response times and throughput:

Action	Mean	90th Percentile	Throughput
get_media_details	0 ms	100 µs	12
get_index_stats	1 ms	2 ms	2
semantic_search	359 ms	432 ms	16
index_local_directory	56.5 sec	56.5 sec	1
reindex_media	44.37 sec	44.37 sec	1

Key insight: semantic_search averages 359ms with the 90th percentile at 432ms, a 20% variance that suggests some queries hit edge cases. The metadata operations (get_media_details, get_index_stats) are lightning fast at under 2ms, which is expected since they're just dictionary lookups.

The indexing operations (reindex_media at 44.37 seconds, index_local_directory at 56.5 seconds) are the heavy hitters. Now I have baselines to track optimization efforts.

The Slow Events View

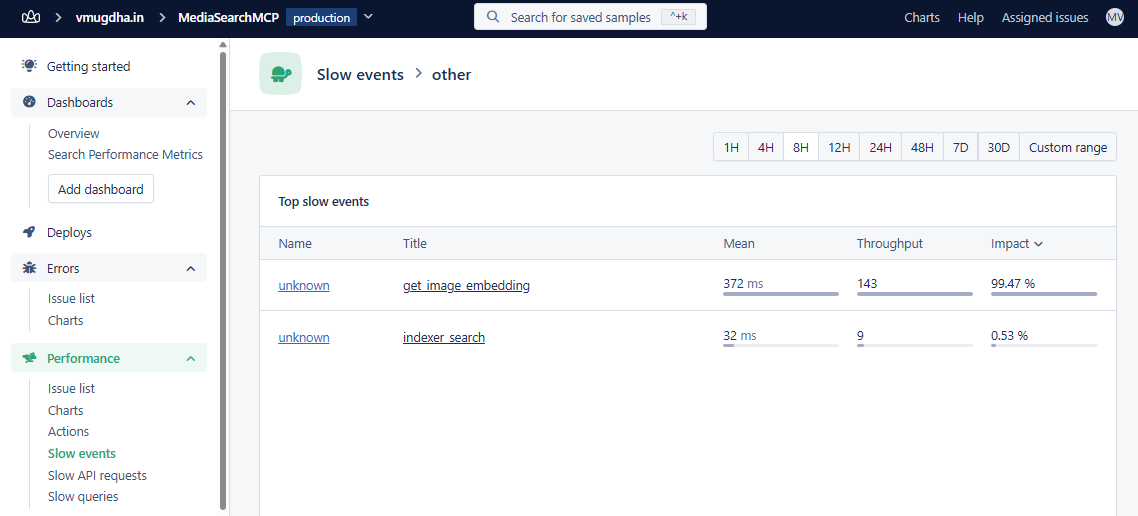

The Slow Events view surfaces the specific operations consuming the most time:

Event	Mean	Throughput	Impact
get_image_embedding	372 ms	143	99.47%
indexer_search	32 ms	9	0.53%

Key insight: get_image_embedding accounts for 99.47% of slow event impact. It's called 143 times (once per indexed image during reindex) at 372ms each. That's where the 56-second index_local_directory time comes from.

The SigLIP text encoder (indexer_search at 32ms) is much faster and only contributes 0.53% of the impact despite being called 9 times.

Host Metrics

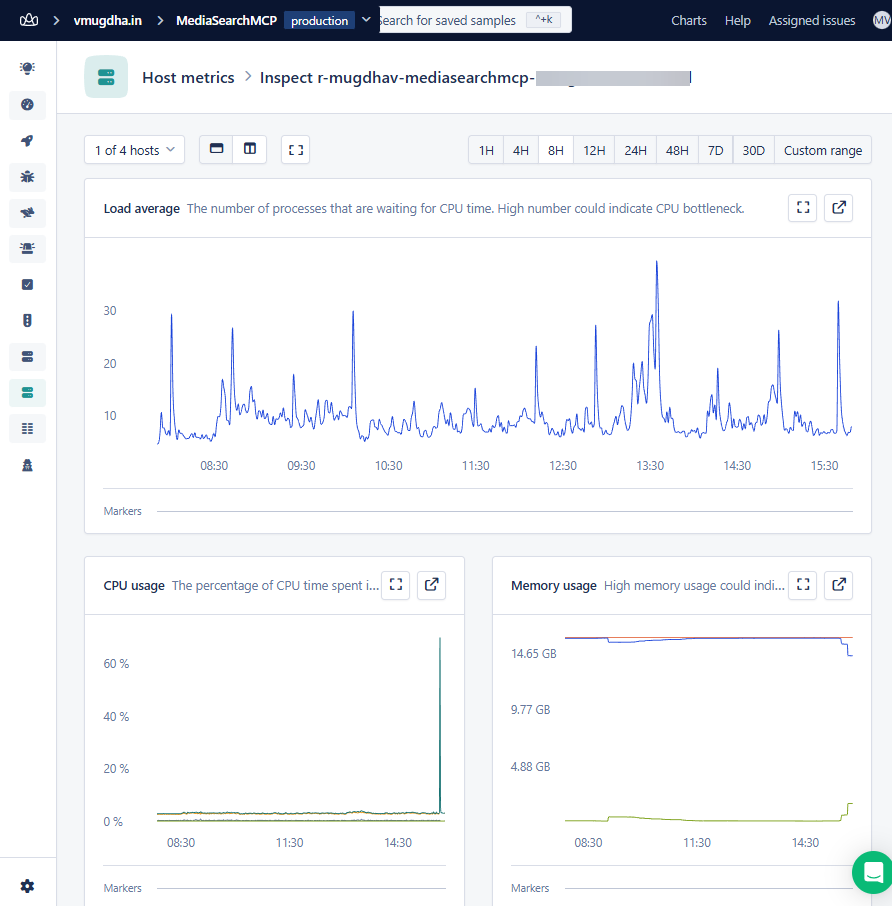

The Host Metrics view shows what's happening at the infrastructure level:

• Load average: Spikes up to 30+ during reindexing operations, indicating CPU contention
• CPU usage: Generally low (under 5%) but spikes to 60%+ during model inference
• Memory usage: Stable around 14.65 GB. The SigLIP model holds ~150MB in memory, and the rest is the Hugging Face Space's base allocation

The correlation is clear: load average spikes (13:30, 14:30) align with reindex operations. This confirms the bottleneck is CPU-bound model inference, not memory or I/O.

Error Tracking in Action

The error tracking I implemented with send_error() is now catching real issues. Here's a FileNotFoundError that occurred when a user requested details for a file that had been moved:

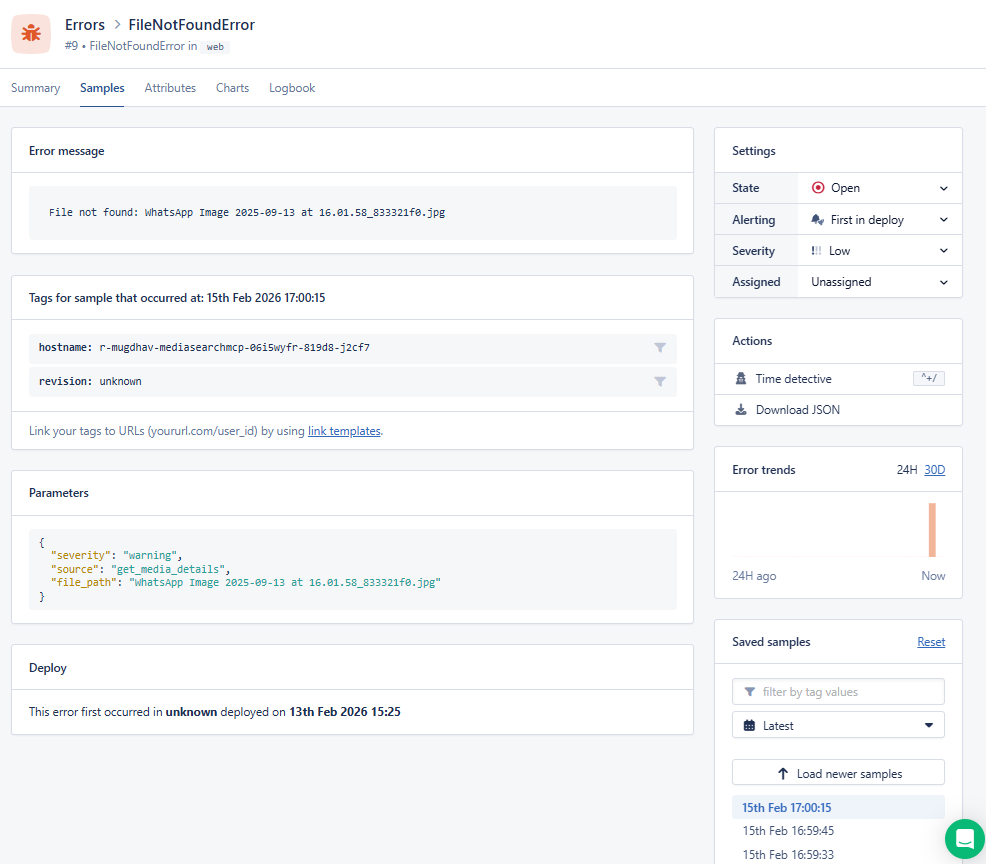

The error detail view shows context alongside the stack trace:

• Error message: "File not found: WhatsApp Image 2025-09-13 at 16.01.58_833321f0.jpg"
• Parameters: The source field shows it came from get_media_details, and file_path shows which file was missing
• Error trends: The chart on the right shows this error spiking recently
• Saved samples: Multiple occurrences are tracked, making it easy to see if this is a one-off or recurring issue

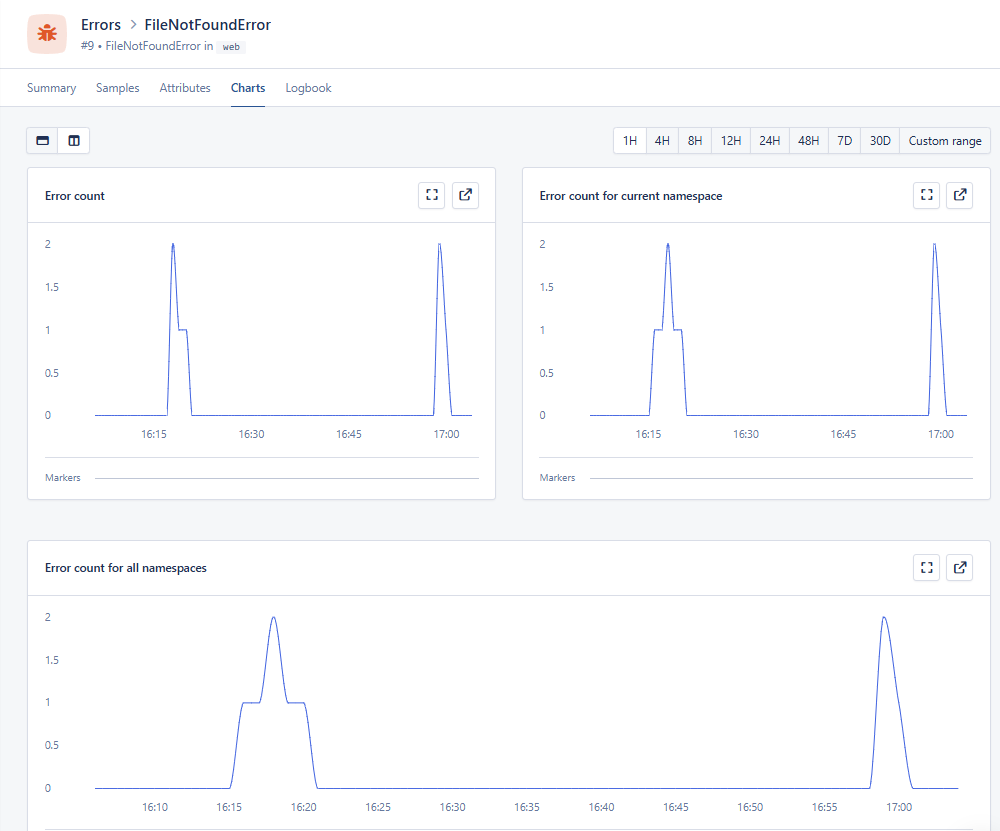

The error charts view shows the pattern over time:

Two distinct spikes are visible, one around 16:15-16:20 and another at 17:00. This pattern suggests the errors aren't random; they correlate with specific user sessions or test runs. Without this visibility, I'd be guessing at whether file access errors were increasing or just occasional glitches.

Actionable Insights

From this data, I can prioritize optimizations:

1. Batch image embeddings: Instead of calling get_image_embedding 143 times individually, I should batch them. SigLIP supports batch inference, and reducing Python loop overhead could cut reindex time significantly.
2. Cache text embeddings: The indexer_search time includes encoding the search query. For repeated queries, I could cache the text embedding.
3. Monitor similarity score trends: The semantic_search.avg_similarity gauge will show if search quality degrades as the index grows.

Bug Fixes During Instrumentation

Here are a few bugs I encountered during the instrumentation, and how I fixed them:

Initialization Order

A subtle bug: load_dotenv() must run before Appsignal() is initialized. Otherwise, environment variables from .env aren't available for local development. Small detail, silent failure.

Configuration Auto-Discovery

My initial setup used __appsignal__.py with the standard appsignal.start() pattern. AppSignal started but wasn't sending data. The issue: the active option defaults to false, and if auto-discovery silently fails, nothing gets reported.

The fix was inline configuration with explicit os.getenv() reads, removing the auto-discovery dependency.

BaseModelOutputWithPooling

Newer versions of the transformers library return a BaseModelOutputWithPooling object from get_image_features() instead of a raw tensor. This broke embedding normalization:

# Before (broke on newer transformers)
image_features = self.model.get_image_features(**inputs)
image_features = image_features / image_features.norm(dim=-1, keepdim=True)

# After (works with both old and new)
image_features = self.model.get_image_features(**inputs)
if not isinstance(image_features, torch.Tensor):
    image_features = image_features.pooler_output
image_features = image_features / image_features.norm(dim=-1, keepdim=True)

AppSignal would have caught this error in production with a full stack trace, which is exactly why I added error tracking before deploying.

What's Next

With the baseline established, I'm planning to:

1. Add a custom dashboard for search quality metrics (similarity scores over time)
2. Set up anomaly detection on index.total_files to catch if the index silently loses data
3. Track model load time as a separate gauge to monitor cold starts on the Hugging Face Space

The server is live at mugdhav-mediasearchmcp.hf.space, and now I can actually see what's happening under the hood.

---
